SUPERPOXY 320GF

SUPERPOXY 320GF has excellent acid resistance to continuous and alternating service for a wide range at chemicals, solvent, caustic, crude and fuel oils, animal and vegetable oils and fats, neutral, alkaline and non-oxidizing salt solutions in water.

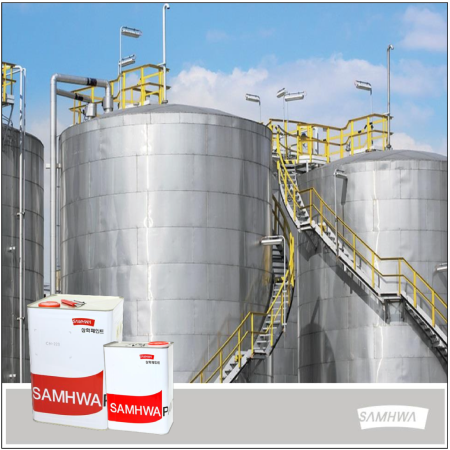

Tank lining for shop tanks, road tankers, barges and storage tanks in the chemical and petrochemical industries.

View more

Procedure

1. Surface preparation

  • Immersion : Blast all surface in accordance with SSPC-SP5. (“White Metal”, SIS Sa 3)
  • Concrete : As a fully cured state and prepare in accordance with blast cleaning or prickling

2. Environmental ConditionOver 10°C is ideal for painting and hardening.

  • The surface temperature must be at least 3°C above the dew point to prevent moisture condensation.

3. Application Equipment

  • Conventional or airless spray, power mixer, brush
  • Airless spray: Tip size-0.019~0.021inch Output pressure-2200psi/150atm (*Airless spray data are indicative and subject to adjustment)
  • Recommended thinning ratio : about 5% (Airless spray)

Caution for usage

1) Mix the material according to designed mixing ratio and use after stirring it until uniformly blended. And, Use the mixed paint within pot life.

2) Avoid applying paint on rainy days, high humidity(Over 85%) day, low temperature(Under -5°C) condition.

3) When applied over inorganic zinc, a mist coat is required for removing pinhole and bubbling.

4) Even if you use same product(color, lot), the painting equipment and method(thinning ratio) can cause different color. So, you should check the color before using it.

5) When apply this paint to immersion region of concrete managing waterproofing, it is possible to occur peeling. So, coating work have to be proceeded after checking the adhesion with our products.

6) When applying this paint over old coating (Enamel), use Superthinner30. If thinning a lot, wrinkling can be occurred.

7) When applying this paint to

Safety Precautions for handling

1) Store it indoor (5~35°C) condition, avoiding heat and open flame. And, keep it standing and being closed.

2) Dispose of the waste paint through the waste disposal company designated by the Ministry of Environment.

3) Since this product is a chemical product, it may deteriorate during long-term storage. Please refer to our customer center for the products that have p assed this period.

Warning notice

  • Please consult our enclosed here with warning

Application system

  • Subsequent topcoat : SUPERTHANE 300BG, SPIFLON(S), etc.
View more
Finish Semi-gloss
Color Silver
Applied over Steel, Galvanized steel, Old coating(Enamel) Components 2
Volume Solid Approximately 83% Recommended Film
Thickness
 125~200 μm
 Coats 1~2 Mixing Ratio
A : B

1:1(vol)
Recommended
Coverage
6.64 m2/L ( @ D.F.T. 125μm)
* Allow for application losses and surface
irregularities.
 Pot life(20°C) 2hrs
Dry times(20°C) Dry through : 20hrs Recoatable(20C) To topcoat(min/max) : 18hrs ~ 1months
Diluent SUPERTHINNER 30, THINNER 395 Shelf Life
112months

(When stored indoors at 5~35C)
Packing Unit 18L[9L/9L], 4L[2L/2L]
View more
